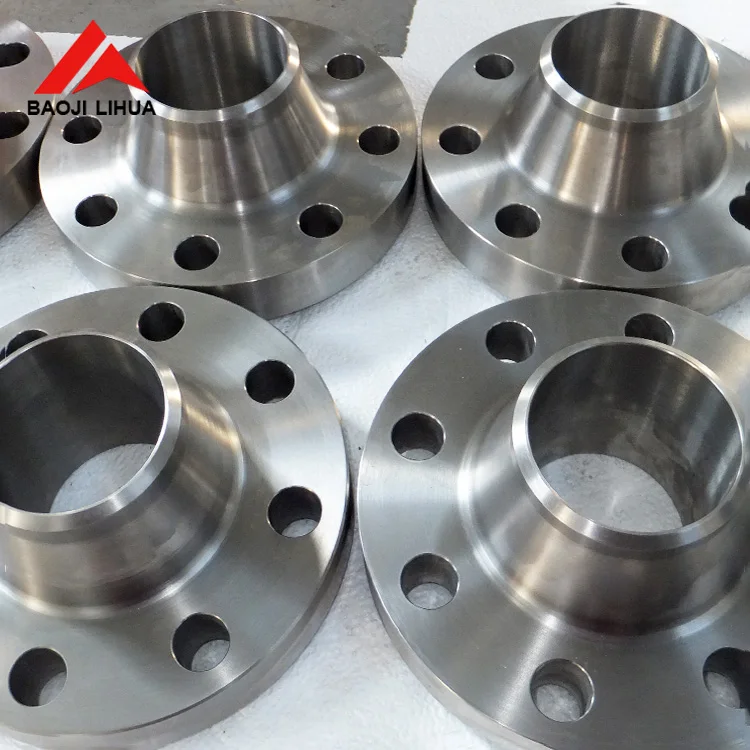

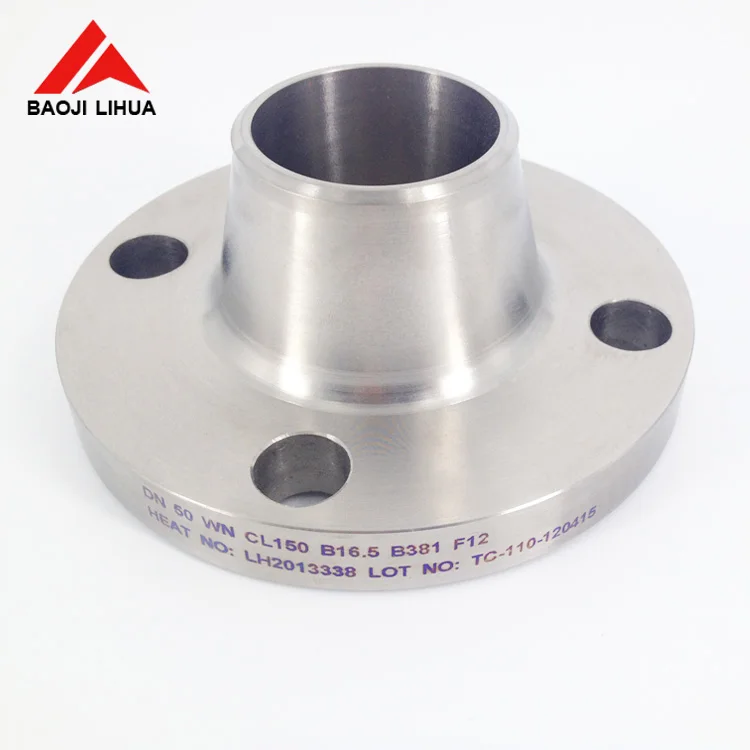

Hot sale titanium Flange asme b16.5 wn rf flange class150 sch80

FOB Reference Price:Get Latest Price
US $20-100 / Pieces | 1 Piece/Pieces ;Sample is available for testing (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Size:
1/2''~80''(DN10~600)
Material:
Titanium Gr1,Gr2,Gr5,Gr7,Gr12
Standard:
ASME/ANSI, ASME/ANSI B16.5
Place of Origin:
Shaanxi, China (Mainland)
Model Number:
Titanium flange WN
Brand Name:
LH
Standard or Nonstandard:
Standard
Pressure rating(ANSI):
CL150,CL300,CL600,CL900,CL1500,CL2000,CL2500
Working temp.:
-60℃~250℃
Flange surface:
FF,RF,TG,RJ etc.
Processing method:
Forging,machining
Technics:
Forged Casting
Inspection::
Ultrasonic Testing & Material test repot EN10204.3.1
Application:
Oil & gas industry,Boiler pressure vessels, chemical, shipbuilding
Certification:
ISO9001:2008, alibaba assessed supplier
Product name:
Hot sale titanium Flange asme b16.5 wn rf flange class150 sch80
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood case lined with foam or as per client requirements
Port
Shanghai port,titanjin
Lead Time :
Within 10~15 days or depand on order quantity

Hot sale titanium Flange asme b16.5 wn rf flange class150 sch80

1. Description

ProductsTitanium  Flange
Material GradeGr1,Gr2,Gr7,Gr12
Certification   ISO9001:2008
StandardANSI B16.5/ASTM B16.5
sizeNPS 1/2"~ 24"
PressureClass150-class 2500
TechniqueForged and CNC Machined

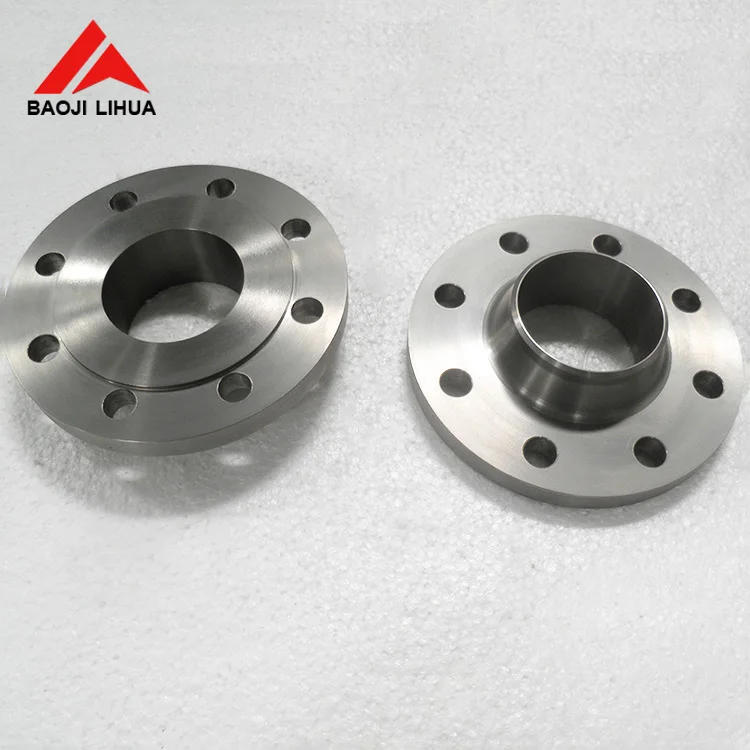

typeWNRF , SORF , BLIND ,SW, PL
Flange surfaceFF,RF,TG,RJ etc
ApplicationBoiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Advantage   1. Long service life
2. corrosion -resistant
3.hign yeiled strenth and tensile strength.





Maching processing of flanges 2. Chemical requirements



N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Gr1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

3. Tensile requirements

Grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15



4.Product Description

OD ( mm)I D  ( mm)HEIGHT ( mm)
200-400100-30035-120
400-700150-50040-160
700-900300-70050-480
900-1300400-90070-250


5. Available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange





Quality Assurance

Company Information



Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing various non-ferrous metals, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing non-ferrous metals, mainly for titanium, nickel& nickel alloy, tantalum mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2008, TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.
