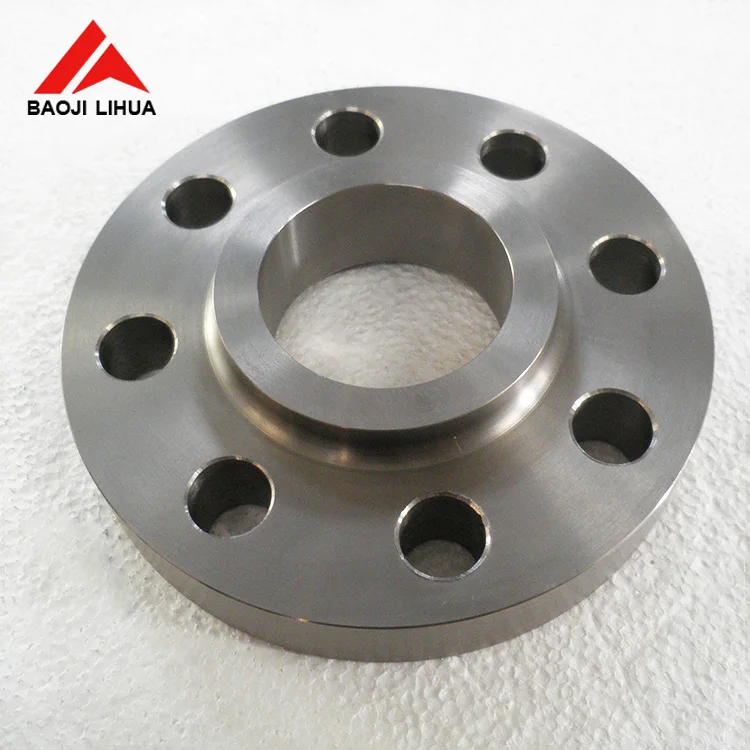

Hot sale Gr2 Gr5 Gr7 class 150 SO rf titanium flange

FOB Reference Price:Get Latest Price
US $15-100 / Kilogram | 1 Kilogram/Kilograms (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
Shanghai port
Report Suspicious Activity
Overview
Quick Details
Size:
NPS 1/2"~ 24"
Material:
Titanium Gr1,Gr2,Gr5,Gr7,Gr12
Standard:
ASME, ASME/ANSI B16.5
Place of Origin:
Shaanxi, China (Mainland)
Model Number:
Titanium flange SO
Brand Name:
LH
Standard or Nonstandard:
Standard
Flange surface:
RF,FF,MFM,TG,RJ,M,T
Working temperature:
-60℃ ~ 500℃
Pressure:
Class 150-class2500
Certification:
ISO9001:2008
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product name:
Hot sale Gr2 Gr5 Gr7 class 150 SO rf titanium flange
Packaging & Delivery
Packaging Details
Plywood case tied by steel band or as per client requirements
Delivery Time
Within 15 ~ 20 days or base on order quantity

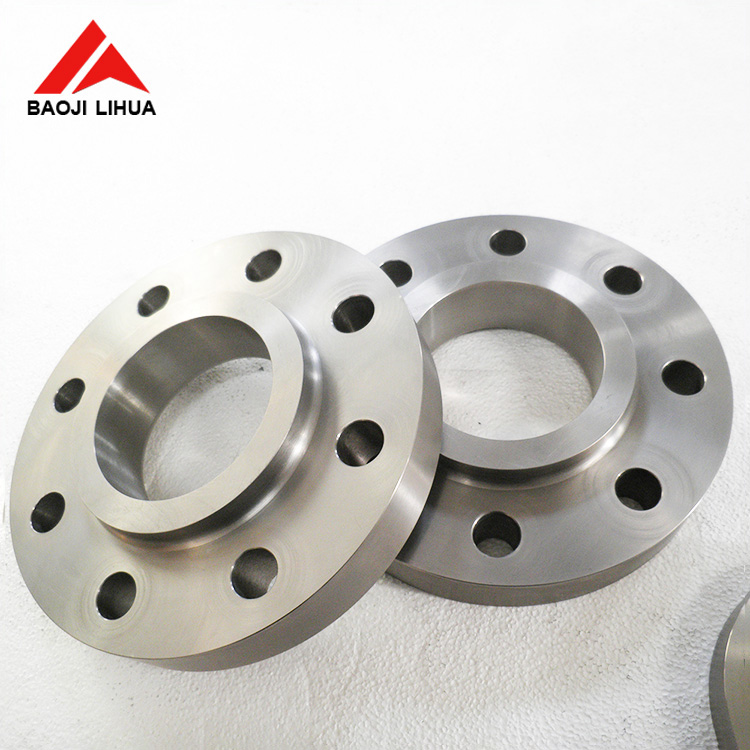

Hot sale Gr2 Gr5 Gr7 class 150 SO rf titanium flange



1. Description

productsTitanium  Flange
Material GradeGr1, Gr2, Gr5,Gr7, Gr9, Gr12
Certification   ISO9001:2008
StandardANSI/ASTM B16.5
sizeNPS 1/2"~ 24"NB
Pressure Clase150-2500 class
TechniqueForged and CNC Machined
typeSORF
Flange surfaceFF,RF,TG,RJ etc
Applicationused in cars, glasses,medical equipment , electronics , petrochemical equ ipment
Advantage   1. Long service life
2. corrosion -resistant
3.hign yeiled strenth and tensile strength.

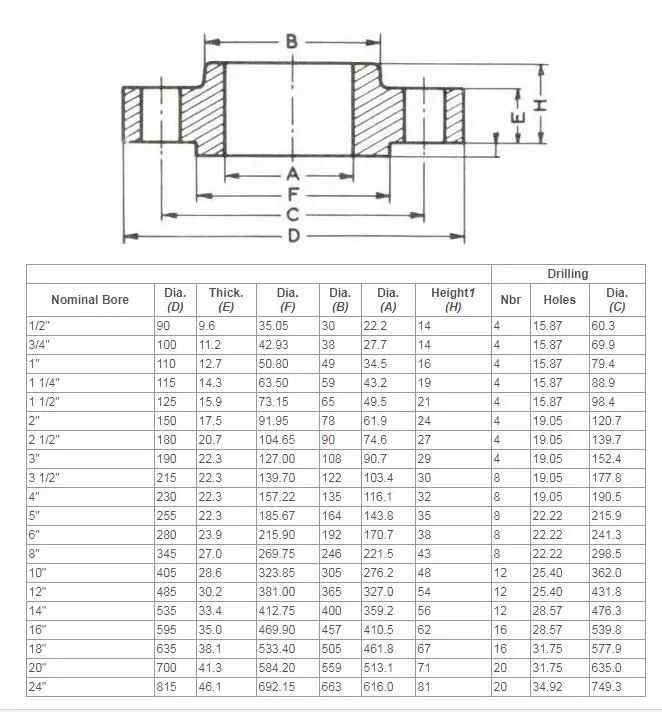

Class 150



Maching step of flanges:

2. Chemical requirements



N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Gr

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

3. Tensile requirements

grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15

12

70

438

50

345

18



4.Product Description

OD ( mm)I D  ( mm)HEIGHT ( mm)
200-400100-30035-120
400-700150-50040-160
700-900300-70050-480
900-1300400-90070-250


5. Available Flange types

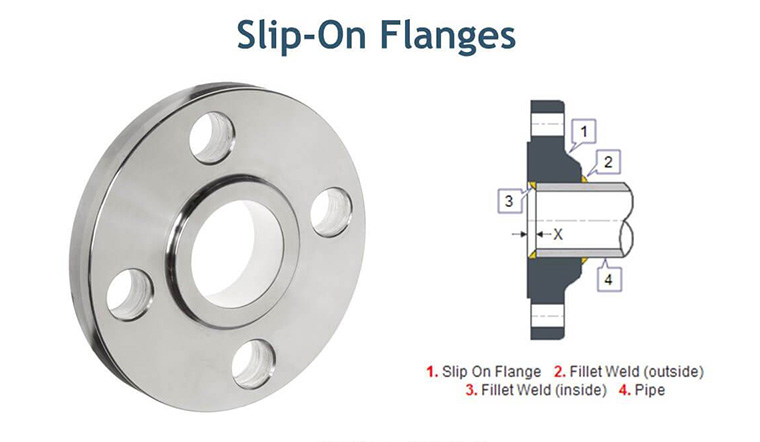

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange

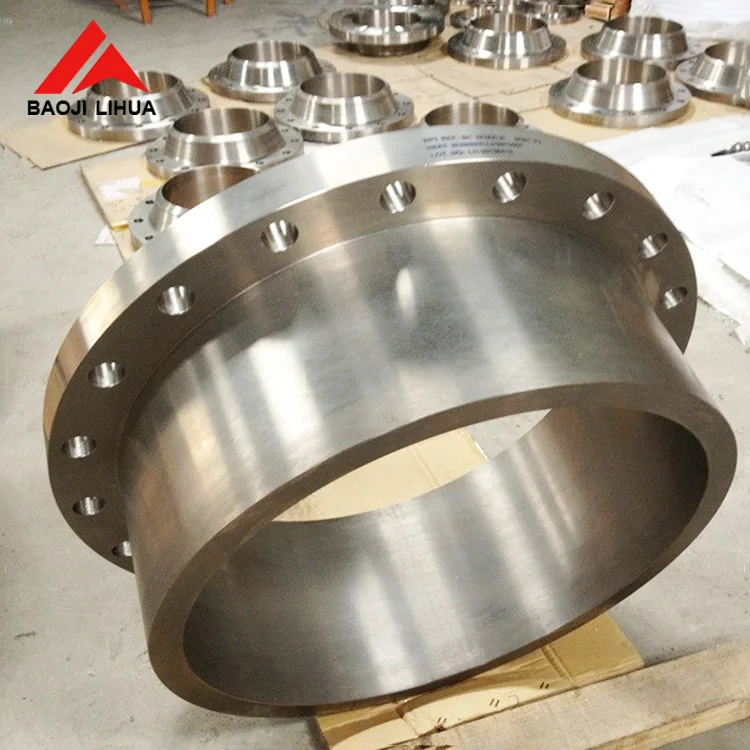

i. titanium large-diameter flange

6.Service

a.We can make quotation to customer within 24 days
b.We can advise the production and delivery status to customer at any time
c. We promise we'll replace the materials for the same at our cost if quality problem occurred
d. Test: quality certificate according to EN10204.3.1 ,
       can Provide Bao Ti Center Physical and Chemical Test Report or Northwest Institute For Non -ferrous Metal Research Test Report if necessary

Our Services



Quality Assurance



Company Information

  Our main products include:

    Titanium Bar / Rod
    Titanium Sheet, foil
    Titanium Plate
    Titanium tubes/pipe (exhaust pipe, exchanger tube)
    Titanium Wire/ Titanium Welding Rods
    Titanium Fasteners, flange ,pipe fitting ,forged ring…
    CNC machining parts with titanium, tantalum, Molybdenum… Tantalum, Nickel, Tungsten, Niobium, Zirconium….
    In addition to our custom manufacturing capabilities , Baoji Lihua  have a large inventory of  titanium , tantalum , Nickel, Tungsten products that we can ship fast.
    We are confident that our products must can provide some advantage to you compared to other suppliers.
